Name: Temperature Testing Machine For Distribution Bus
Brand: Yuh Shin Electric Co.,Ltd.
SKU: YS-VR-65-3

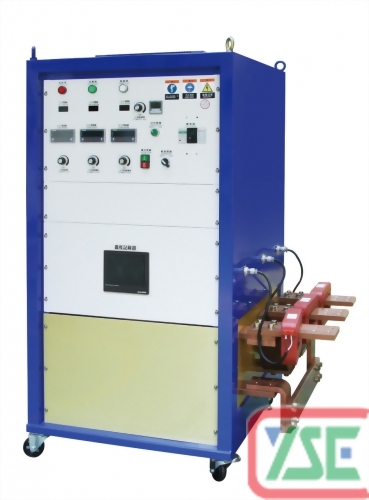

Temperature Testing Machine For Distribution Bus

Model : YS-VR-65-3

Q'ty :

1.Type type: movable box

2.The use of field: Indoor

3.The surrounding temperature: 0 ~ 40 ℃

4.Relative humidity: 80% or less

5.Altitude Height: 1000 meters below sea level

6.Capacity: 65KVA

7.Input voltage: 3ψ3W AC220V ± 10%, 50 / 60HZ ± 2%

8.Rated current: 180A

9.Output voltage: MAX AC0.5-6.3V

10.Rated current: MAX AC6000A

11.Function: 3-phase output constant current

12.Cooling: water-cooled, 12L / min

13.Transformer: H-class insulation

14.Protection Devices:

1) Silicon Semi-Conductor Overheating Switch

2) Non Fuse Breaker

3) Failure Alarm & Indicator

4) Delayed Startup Switch

15.Voltmeter: 0.5~9.99V, units digit + 2 decimal, numeric indication

16.Ammeter: 500~6000A, five-digit, numeric indication. Analog signal DC0-10V Output

17.Equipped with hanging lugs & wheels

18.No fuse breaker: 3ψ225A main power input use

19.Form of Control Unit: SCR controlled Micro Computer phase power controller, Constant Current Control

20.Dimension: W780mm×D1000mm×H1800mm

21.Weight: About 620 kgs

1.Capacity : 65KVA 3φ

2.Input Voltage : 220V

3.Output current : Max.6000A

1. If you can not find the needed type of Power Supply in our cataloque,please inform us the specifications or sketch. Our engineers will work with you to customize it to your specific application requirement.

2. Specifications are subject to change without prior notice due to constant improvements.
