【NEW】Direct Diode Laser Welder 20W

Active Heat Control™ Function equipped!NEW

It's suitable for soldering and plastic welding applications.
Localized heating - Ideal for small parts and small spacing.
Model : ML-5020AW

Direct Diode Laser Welder as 20W output.

Target for laser soldering on small devices. Compared with soldering iron, no-contact and less-damage.



 Features

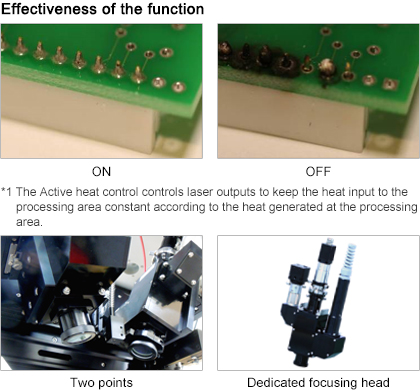

  • ◆ Active Heat Control ™

    Dedicated focusing unit (option) is necessary for the function.*1
    Available for two points processing and each focusing unit.






  • ◆ Energy saving

    Direct Diode Lasers apply the laser beam directly from LDs, thus low power consumption and high efficiency.

  • ◆ Laser soldering

    Effective for fine soldering in high-density or small-pitch area. Available for lead-free solder.

  • Light weight and compact design

    Design for setting up in automatic machines and it leads to space saving.

  • ◆ Maintenance free

    Maintenance free achieved according to the design optimization and it leads to reduction of consumable cost and man-hour.

Model ML-5020AW
Maximum rated output (W) 20×2
Emission length (~sec or ~ms) ~5 or ~999
Fiber size (φ-mm) / length (m) 0.1 / 5
Wavelength (nm) 915
Cooling method Full air cooling
Power requirements (AC-V, Hz) Single phase 100~220 50/60 ±10%
Focusing unit Dedicated focusing unit
Weight (kg) 22
Dimension (mm) 480(W)×563(D)×211(H)

* Specifications subject to change without notice.

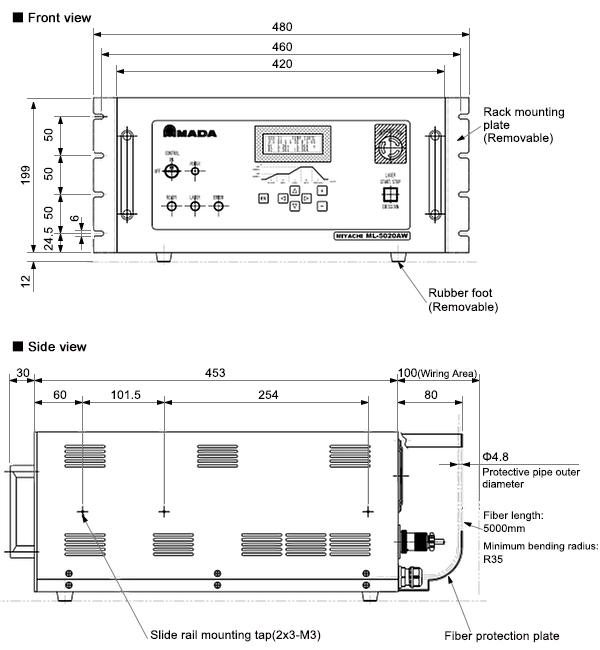

▶ Dimensions in mm
