Model : ML-2553C

 Features

  • ◆ A new model in the best seller series accumulating long term reliability and result.
  • ◆ Improved condensation performance by high brightness / Improved repetition frequency (repeated number of pulse)
    Enables more precise processing compared with previous model, by improved condensation performance.
    Improves productivity drastically, by implementing high speed processing with high repeated number of pulse.
  • ◆ Enables using φ0.2mm minimum optical fiber.
  • ◆ Combined Galvo, implements long WD and wide processing area, keeping small diameter.
  • ◆ "Productivity" increased by multi spot welding, and "flexibility of machine design" increased by long WD and wide area.
  • ◆ Suitable for welding eletrical components and electronic parts, and implements more precise processing with high speed and quality.



 High brightness

Brightness is about double compared with previous model. This 200W model implements equivalent diameter being same as 150W, by improving brightness.



 High power stability (Real-time power feedback function)

Sampling laser output in real time.
Providing power feedback in real time, comparing with the sampled laser output and the preset waveform.
Reproducing the preset waveform by adjusting input power of flash lamp.
Implements ideal laser output waveform.
Enables welding with stability and high quality by the function. "What you set is what you get"







▶ Intuitive Interface

Calor liquid crystal touch panel is equipped.
Available for detachable program unit (with optional cable), operating remote place.




 Real-time Power Feedback Control

The laser output in the lamp-pumped module is monitored in real time. The monitored laser output is compared with the set waveform and power is fed back in real time, varying the energy input to the lamp to reproduce the set waveform and obtain the ideal laser output waveform.

 Variable mirrors

These mirrors eliminate laser power loss and improve branch balance.






 Waveform control

Equipped with a "fixed mode" that features three-level waveforms, and a "flex mode" to provide more complex waveforms.





 Power monitor

Laser energy (J) and average power (W) are monitored to detect abnormalities.






 External communications

Configuration of parameters and monitoring of performance can be carried out from a separate location.
- Type: RS-485 compliant, asynchronous, full duplex
- Data speed: 9600, 19200, 38400 bps

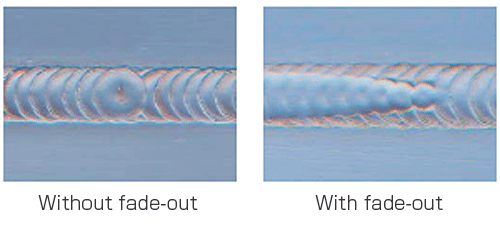

▶ Fade-in/Fade-out








Model ML-2553C (High brightness model) ML-2553C (Standard model)
Oscillator Maximum average power(W) 200
Maximum output energy(J/P) 60
Maximum peak power(kW) 4 5
Pulse width(ms) (Standard) 0.3~60.0 ( 0.1ms step )
(Fine setting) 0.25~5.00 (0.05ms step)
Repeatd number of pulse(pps) 1~500
Wavelength(nm) 1064
Power stability ±3%
Minimum optical fiber(mm)
* with maximum poower
φ0.2 (~200W) φ0.2 (~150W)
φ0.3 (~200W)
Power requirements Three phase AC200V±10% 50Hz / 60Hz
Cooling way (Heat exchange) Water - Water
Contoller Touch panel(English)
Demension(mm) 560(W)×1310(D)×1173(H)

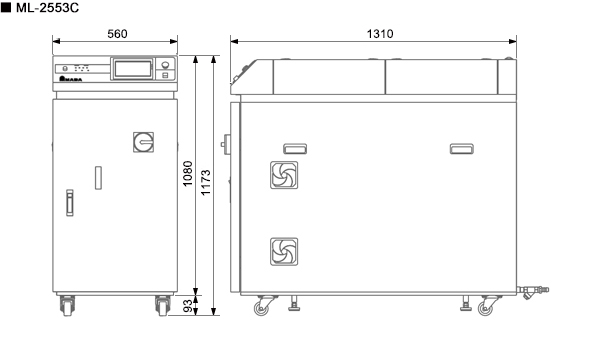

 Dimensions in mm
