GWMseries

Newly-developed digital scanner enables high precision multi spot /
seam welding at high speed!
Model : GWM-STD/SHG/MHP/PFL/DDL

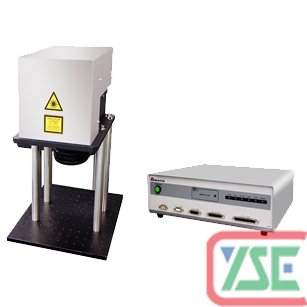

The laser scanning system for welding is equipment for realizing high-speed multi-spot / seam welding for work in a processing area by scanning a laser beam transmitted by optical fiber, providing complete control in the X-Y directions.
The head unit includes five models; STD (for a fundamental-mode laser), SHG (for SHG green laser), MHP(for high power fiber laser), PFL(for pulsed fiber laser), DDL(for directed diode laser) and is compatible with various laser welders in the ML series.

▶ Features

  • Newly-developed digital scanner is employed. Due to digitalization, repetitive positioning precision is much improved and thermal drift is reduced.
  • High-speed multi-spot welding of up to 140 points/sec (pulse width: 2ms, travel distance: 1 mm) and up to 1000 spots in an area of 94 x94mm is possible.
  • Multiple weld schedules can be set to handle different materials or thicknesses of material used in the same work.
  • High-speed seam welding with a maximum repetitive speed of 5000pps or CW (continuous) oscillation is available.
  • One controller can control up to three scanner heads.

▶ Control screen

Plan drawing

  • gwm-series_jp-4.png

  • Data saving, transferring

  • gwm-series_jp-5.png

  • Laser configuring

  • gwm-series_jp-6.png



▶ Configuration Diagram


Scanning system for laser welding
Model GWM-STD GWM-SHG GWM-MHP GWM-PFL GWM-DDL
Supported laser welders ML-2050A/2051A/
2150A
ML-8150A ML-6920B/6920BS ML-3060AS ML-5120A
ML-2350A/2350AF/
2351A/2351AF
ML-6930B/6930BS ML-3030AS
ML-2450A/2451A ML-6940B/6940BS ML-3015AS
ML-2550A/2551A/
2552A
ML-6950B
ML-2650B/2651B
ML-6040A/6500C/
6700A/6700B/6810B
Maximum marking area φ35mm, φ60mm, □94mm, φ100mm ±0.5% □35mm ±0.5% □200×120±0.1% □94, □150, □220 ±0.5% □90, □170, □209
□250, ±0.5%
fθ lens (YAG) f80, f150, f165
(Fiber laser) f163
f80 f306 f163, f306, f420 f163, f295, f402, f420
Collimate lens (YAG) f50, f80, f100
(Fiber laser) f50, f80
f80 f50, f80, f100 (ML-3060AS)
f40, f60, f75
f25, f35, f45
(ML-3030AS)
f40, f60
(ML-3015AS)
f40, f60, f75, f90
Ambient temperature / Ambient humidity 5 to 35℃(with no condensation or freeze) / 80% RH or lower (with no condensation or freeze)
Power requirements Single-phase, 100 to 240V AC -20% / +15% (50/60Hz)
Power consumption Average: Approx. 45 W, Peak: Approx. 140 W Average: Approx. 60 W, Peak: Approx. 220 W Average: Approx. 45 W, Peak: Approx. 140 W
Supported OS Windows XP(SP2 or later) / Windows Vista Business(32-bit) / Windows 7(32-bit)
Software SWDraw SWDraw2
Interface USB, RS232C
International standard CE Marking, RoHS

*Specifications subject to change without notice.

▶ Dimensions in mm

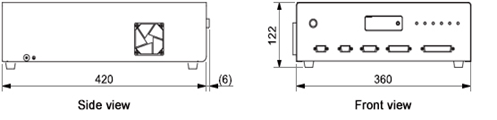

【Scanner controller】 approx. 6.9kg
Common

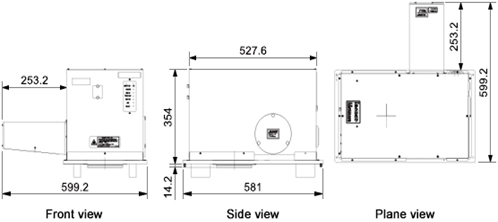

【Scan head】 approx. 6.6kg (Collimator lenses and f-theta lenses are not included.)
GWM-STD/GWM-SHG/GWM-PFL/GWM-DDL Common


【Scan head】 approx. 44kg (Collimator lenses and f-theta lenses are included.)
GWM-MHP














 High-speed multi-spot welding


 High-speed seam welding


 Moving image of welding using the scaning system

*The moving image shows differently depending on PC.
