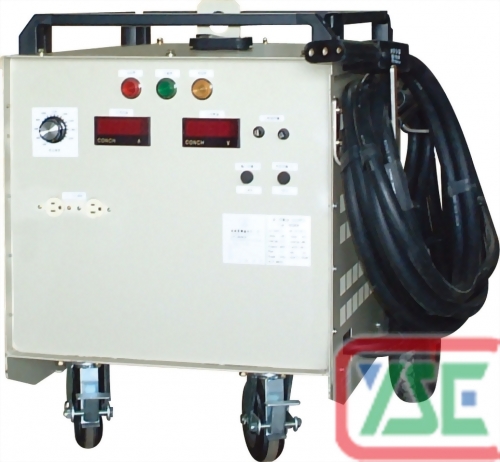

Model : YS-DP41

Q'ty :

Add To Inquiry

1.Output voltage will be automatically adjusted to DC 28.5V when input voltage is within ±10%

2.Instant start current adjusting range at 300A~2000A

3.NFB switch protects power supply and against current overload when it is overloaded or short circuit.

4.When power source’s phase failure, there will be no voltage output in order to protect load.

5.With coolant fans, protect the machine from overheating

6.Recessed design of machine body structure, allows protect front control panel board from damages.

7.Output terminal is attached to the machine and marks positive / negative & Voltage

8.Individual breakdown, Input & Load lamps display on the control panel

9.Flat top design of the machine makes it convenient to gather all devices in one place while operation.

10.ㄇ shape handle forms the 口 shape cable mounting bracket, along with 4 pieces of swivel & brake casters.

11.4pieces of U shape brackets are included at two sides of the machines, helping cable mounting use.

12.Hanging shackle is included at the center of the machine

13.Nameplate contains date of manufacture attached to the control panel & WARN/SAFETY notice are marked in the machine

14.Male plug & female socket are included in the power input cable.

15.2 pieces of 20 feet of power cord is included in the output terminal; that includes a 3-pin AT3 input plug.








Input

3ψ220-230V

Rated current

76A

Frequency

60HZ

Output voltage

28.5V

Output voltage regulator rate

±0.05%

Maximum steady-state output current

600A

Starting instantaneous current control

300 to 2000A

Minimum voltage ripple

0.75V

socket

10A,115V,60HZ

1.If you can not find the needed model in our cataloque, please inform us the specifications in detail. Our engineers will work with you to customize power supply to your specific application requirement.

2.Specifications are subject to change without prior notice due to constant improvements.
