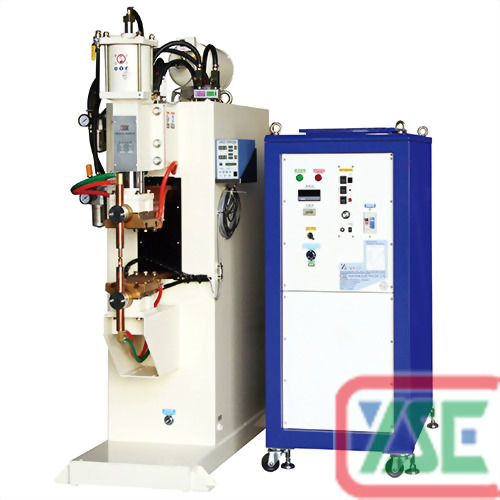

5KVA~10KVA Capacitor Discharge Spot Welding Machines
Energy stored, the main working
principle welding machine is also called the Capacitor Discharge Welding
Machine, with the positives as follows;
1.Allows easy operation, maintenance; accurate & stable controls are assured
2.Simultaneously control voltage, high precision ensures the quality of welding.
3.Adopt JAPAN CHEMI-CON quick
charging and discharging capacitors, ensures stable capacity & longer
lifespan
4.Allows quick charge and
discharge, ensures stability of welding current, high frequency of charge
and discharge.
5.Digital charging voltage display, allows accuracy of charging voltage setting.
6.Good Appearance
|
型式 Type |
電源 Power |
容量 Capacity |
電極加壓方式 Method of Pressurization |
喉深 Throat Depth | 喉間隔Throat Gap |
最大加壓力 Max. Pressure Force |
溶接能力 Weldability mm |
||
|---|---|---|---|---|---|---|---|---|---|
| KVA | mm | mm | Kg |
合金 Alloy |
黃銅 Brass |
鐵 Metal |
|||
| YS-UF30 |
單相 Single phase 220V 50/60Hz |
3 | Pneumatic | 400 | 50~80 | 50~600 | 1.2 | 1.2 | 1.2 |
| YS-UF50 |
單相 Single phase 220V 50/60Hz |
5 | Pneumatic | 400 | 150~300 | 80~1000 | 1.6 | 1.6 | 1.6 |
| YS-UF80 |
單相 Single phase 220V 50/60Hz |
8 | Pneumatic | 400 | 150~300 | 80~1000 | 2 | 2 | 2 |
| YS-UF100 |
單相 Single phase 220V 50/60Hz |
10 | Pneumatic | 400 | 150~300 | 120~1600 | 2 | 2 | 2.6 |
| YS-UF150 |
單相 Single phase 220V / 440V |
15 | Pneumatic | 400 | 150~300 | 120~1600 | 2.3 | 2.3 | 3 |
| YS-UF200 |
單相 Single phase 220V / 440V |
20 | Pneumatic | 400 | 150~ | 120~1600 | 3 | 3 | 3.5 |
1.If you can not find the needed
model in our cataloque, please inform us the specifications in detail. Our
engineers will work with you to customize machine to your specific application
requirement.
2.Specifications are
subject to change without prior notice due to constant improvements.
