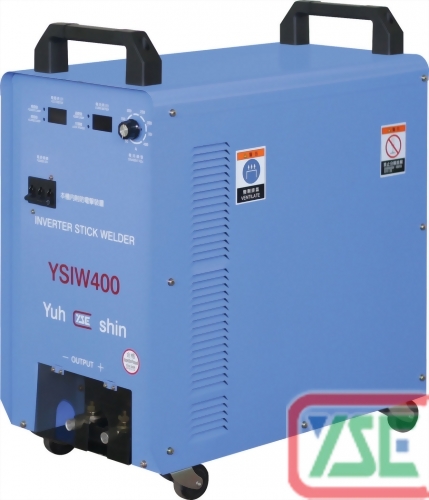

Model : YSIW-400

Q'ty :

Add To Inquiry

1.Saving the electricity for more than 50%; the lightest in the world; adopting the state-of-the-art IGBT semi-conductor; the breakdown rate is fifteen times lower using Mosfet semi-conductor kind sold on the market

2.The use of amount of the frequency converting electric welding machines’ power line can be a half power than conventional kind, for example; if you must use 22 square millimeters for the conventional kind, you only need to use 8 square millimeter which can decrease the weight for more labour-saving carry as well as the cost of purchasing the electric wire.

3.Its weight is three times lighter than conventional kind; hence; it will decrease personnel’s physical burden, and improve the work efficiency.

4.Direct current system of the Inverter ARC welder is different from conventional welding electric welding machine in alternating current that is easier to produce electric shock, and cause accident, injury or death to the operator.

5.DIP switch in the machine has the standard and electric shock proof functions. On this mode; it will allow to do welds easier and increase work efficiency.

6. Easy operation, ideally used in various black steel weld application, for example; low and high carbon steel & CR-MO steel

7. Complete protection function for Exceeded Voltage, Current, Low Voltage, Over heating & Dynamic Current Limit

8. High Frequency & Stable Output & Compensating Circuit ensure weld quality

9. Featuring excellent versatility, allows Good proliferation for thin welds and penetration for thick welds. Optimize the weld shape.

10. Delayed start-up function avoids current shock. Reduced ARC noise and good weld joints.


Type
定格容量
Nominal Capacity
出力容量
Output Capacity
定格出力電流
Output Current
出力電流調整範圍
Output Current Range
使用率
Duty Cycle
定格負載電壓
Load Voltage
最高無負載電壓
Max. No Load Voltage
使用熔接棒徑
Welding Stick
外型尺寸
Size
(W*D*H)
重量
Weight
KVA KVA KW A A %0 V V mm mm kg
YSIW200 Single phase 10 7.5 160 20~160 35 27.8 63(58) 2.0~3.2 150*305*255 7.8
220(200)
YSIW400 Single / Three 30 20 400 50~400 50 38 75(70) 2.6~5.0 300*540*550 50
220(200)
YSIW600 Single / Three 50 30 600 75~600 50 45 85(70) 3.2~8.0 300*640*550 60
220(200)

* Specifications are subject to change without notice due to constant improvements.
