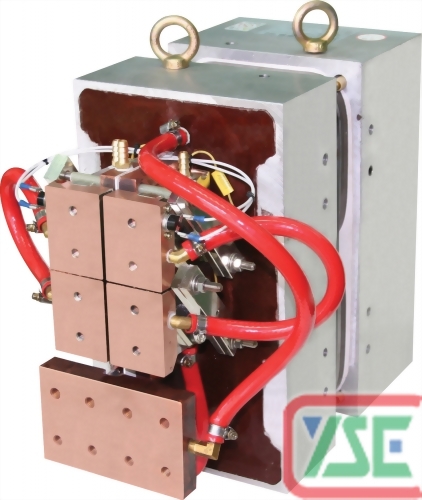

150KVA Inverter DC Welding Transformer
Model :
YS-DWH2-1500103
150KVA Inverter DC Welding Transformer (For SEAM welder Use)
1.ISO 9001 authentication.
2.Ideal solution for welder manufacturing application
|
型式 Type |
YS-DWH2-500101 | YS-DWH2-1000101 | YS-DWH2-1500103 | |
|---|---|---|---|---|
|
定格容量 Rated Capacity at 50% Duty Cycle |
KVA | 50 | 100 | 150 |
|
定格一次電壓 Primary Voltage |
V | 310 | 620 | 620 |
|
週波數 Frequency |
Hz | 1200 | 1200 | 1200 |
|
最大二次電流 Max. Secondary Current |
A | 20,000 | 30,000 | 40,000 |
|
二次電壓 Secondary Voltage |
V | 9.7 | 11.9 | 7.75-8.86 |
|
卷數比 Turn Ratio |
32 | 52 | 40-30 | |
|
冷卻水量 Cooling Water |
L/min | 6 | 10 | 10 |
|
使用率 Duty Cycle |
% | 5 | 5 | 5 |
|
絕緣階級 Insulated Class |
F | F | F | |
|
概略質量 Approx. Weight |
kg | 33.2 | 61 | 100 |
If you can not find the needed type of Transformer in our cataloque,please inform us the specifications or sketch. Our engineers will work with you to customize Welding Transformer to your specific application requirement.
