125KVA~250KVA Portable Resistance Welding Transformer
Model :
YS-DW62-01500
1.Realization of the compact dimension
2.Abundant hot capacity allows higher duty cycle
3.Higher Capability & durability for strong current
4.Higher Mechanical & Electrical Safety
5.Specifications
|
型式 Type |
額定容量 Rated Capacity |
額定週波數 Frequency |
最高二次電壓 Secondary Voltage |
冷卻水量Cooling Water |
重量 Weight |
二次電纜負荷條件 Secondary Cable Load |
Capacity | ||||
|---|---|---|---|---|---|---|---|---|---|---|---|
|
種類 Kind |
斷面積 Square Measure |
長度 Length |
最大熔接電流 Max. Welding Current |
最大入力 Max. Input Capacity |
使用率 Duty Cycle | ||||||
| KVA | Hz | V | L/Min | kg | m㎡ | m | A | KVA | % | ||
| DW62-01250 | 125 | 50 | 22.2 | 5 | 185 |
水冷卻 Water Cooling |
200 | 2.5 | 16,000 | 355 | 6.2 |
| 60 | 23.5 | 380 | 5.4 | ||||||||
| DW62-01500 | 150 | 50 | 25 | 6 | 200 |
水冷卻 Water Cooling |
200 | 2.5 |
18,000 |
450 | 6 |
| 60 | 28.5 | 510 | 4.5 | ||||||||
| DW62-02000 | 200 | 50 | 28.6 | 6 | 225 |
水冷卻 Water Cooling |
200 | 2.5 | 20,000 | 575 | 6 |
| 60 | 33.3 | 670 | 4.5 | ||||||||
| DW62-02500 | 250 | 50 | 25 | 6 | 270 |
水冷卻 Water Cooling |
200 | 2.5 | 18,000 | 450 | 16 |
| 60 | 26.7 | 480 | 14 | ||||||||

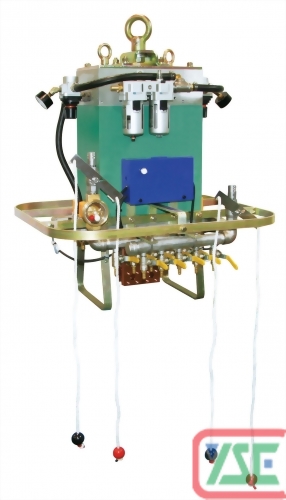

Parts Name
| 1 | Electrode Arm | 11 | Primary Cable | 21 | Air Pressure Hose |
| 2 | Portable Welding Transfomrer | 12 | Earth Wire | 22 | Plain Trolley |
| 3 | Welding Control Unit | 13 | Solenoid Valve Cable | 23 | Main Breaker |
| 4 | Secondary Cable | 14 | Startup Cable | 24 | Safety Rope of Transformer |
| 5 | Auxiliary Cable | 15 | SCR Water Cooled Hose | 25 | Balance Hanger of Transformer |
| 6 | Startup Handle | 16 | SCR Water Cooled Hose | 26 | Balance Hanger |
| 7 | Hanging Rod of Torch | 17 | Water Cooled Hose of Trasformer | 27 | Steel Ring |
| 8 | Water Cooled Cable Terminal | 18 | Water Cooled Hose of Trasformer | 28 | Safety Rope Balancer |
| 9 | Torch Bolt | 19 | Air Pressure Hose | 29 | External Terminal |
| 10 | Spring Balancer | 20 | Water Cooled Hose of Torch | 30 | Solenoid Valve Breaker |
1.ISO 9001 authentication.
2.If our catalog Machine Type Transformers do not meet your application requirements, we can review our database of hundreds of custom configurations. If a new design is required, our team of engineers will work with you to design a transformer to meet your specifications.
