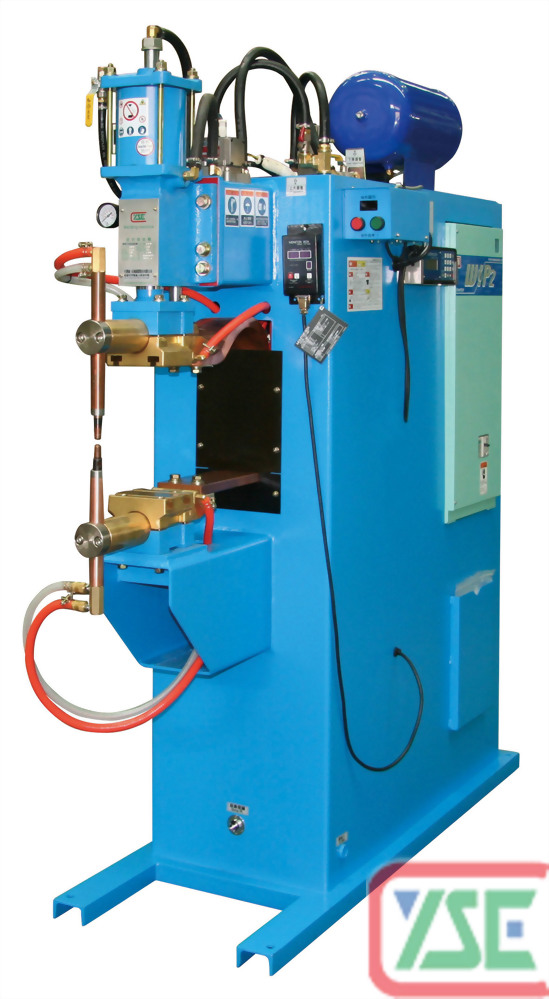

100KVA Pneumatic Inverter Spot Welding Machine
Model :
YS-HF1004
1.Realization of the most reliable high-quality welding due to wide range of welding current.
2.Maximum control of indentation.burning and distortion by nonfluctuating welding current.
3.Elimination of uneasiness on power supply by 3-phase balance load and low output KVA.
4.Excellent Performance shown in copper alloy and aluminum alloy welds.
|
型式 Type |
定格容量 Nominal Capacity |
入力電壓 Input Voltage |
週波數 Frequency |
最大短路電流 Max. Welding Current |
最大入力 Max. Weld Power |
容許使用率 Duty Cycle |
最大加壓力 Max. Pressurization |
喉部尺寸 Throat Size |
冷卻水量 Cooling Water |
|---|---|---|---|---|---|---|---|---|---|
| KVA | V | Hz | A | KVA | % | kg | Mm | L/Min | |
| YS-HF504 | 50 | 220/440 | 50/60 | 20000 | 110 | 10 | 500 | 200*400 | 15 |
| YS-HF1004 | 100 | 220/440 | 50/60 | 30000 | 220 | 10 | 1000 | 200*400 | 15 |
| YS-HF1504 | 150 | 440 | 50/60 | 42000 | 330 | 10 | 1000 | 200*400 | 15 |
1.If
you can not find the needed model in our cataloque, please inform us the
specifications in detail. Our engineers will work with you to customize machine
to your specific application requirement.
2.Specifications
are subject to change without prior notice due to constant improvements.
